NHN KCH 100130 3D Concealed Door Hinge

NHN KCH 100130 3D Concealed Door Hinge

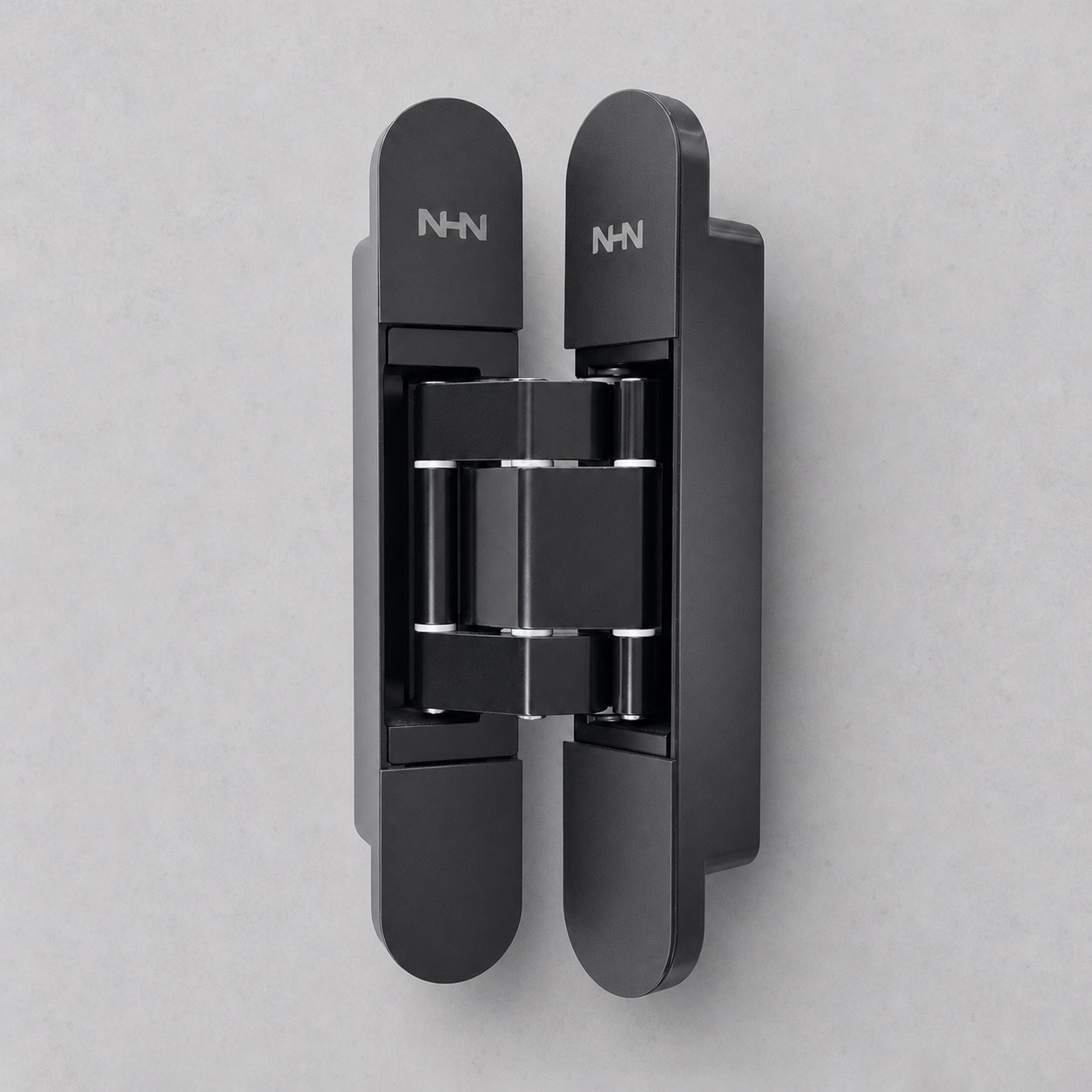

The NHN KCH 100130 is a fully concealed, three-dimensionally adjustable door hinge designed for modern architectural doors. Its concealed installation places the hinge inside the door and frame, keeping the hardware hidden when the door is closed and maintaining a clean architectural appearance.

Key technical specifications

• Model: KCH 100130
• Maximum door weight: 130 kg
• Maximum door width: 1200 mm
• Vertical adjustment: ±3 mm
• Horizontal adjustment: ±2 mm
• Depth adjustment: ±1 mm
• Opening angle: up to 180°
• Handing: non-handed; suitable for left- and right-handed doors
• Installation: concealed inside the door and frame
• Application: wooden, steel and aluminium doors
• Durability: 200,000 opening and closing cycles (manufacturer reference to EN 1935)
• Corrosion resistance: 48-hour test (manufacturer reference to EN 1670)

3D adjustment

The KCH 100130 provides adjustment in three directions: vertical, horizontal and depth. This allows installers to fine-tune door alignment after installation and compensate for small positioning differences.

Concealed architectural design

The hinge is mounted inside the door and frame, keeping conventional hinge hardware out of sight when the door is closed. This makes it suitable for modern residential and commercial architectural applications where a streamlined appearance is required.

Applications

The KCH 100130 is designed for higher-load doors up to 130 kg and 1200 mm wide. Its non-handed construction allows use on both left- and right-handed doors.

SEO article – NHN KCH 100130 concealed hinge

The NHN KCH 100130 concealed door hinge is a heavy-duty 3D-adjustable hinge designed for modern wooden, steel and aluminium doors. Its fully concealed installation keeps the hinge hidden inside the door and frame, combining a clean architectural appearance with precise adjustment and dependable door support.

With a maximum door capacity of 130 kg and a maximum door width of 1200 mm, the KCH 100130 is intended for larger and heavier architectural doors. The hinge provides three-dimensional adjustment, including ±3 mm vertical adjustment, ±2 mm horizontal adjustment and ±1 mm depth adjustment, helping installers achieve accurate door alignment after installation.

The KCH 100130 concealed hinge supports door opening up to 180 degrees and uses a non-handed design for left- and right-handed doors. The KCH series is designed for concealed installation in wooden, steel and aluminium doors and is intended for modern residential and commercial buildings.

For projects that require concealed heavy-duty door hardware, accurate adjustment and long-term durability, the NHN KCH 100130 provides a discreet architectural hinge solution. Manufacturer documentation states durability testing to 200,000 cycles with corrosion testing referenced to EN 1670.
